Electronic Circuit Breakers (ECBs)

16 Products

A high switch-on capacity is combined with an electronic relay. WAGO’s space-saving ECBs come into play when the focus is on both safety and a superior price-performance ratio.

WAGO’s ECBs are the space-saving and precision solutions for fusing DC voltage circuits.

  • 1-, 2-, 4- and 8- channel ECBs with fixed or adjustable currents ranging from 0.5 to 16 A
  • High switch-on capacity: >50,000 µF
  • Communication capability: remote monitoring and reset
  • Pluggable CAGE CLAMP® Connection Technology (option): maintenance-free and time-saving
  • Comprehensive range of approvals: many applications
  • Single Channel ECBs 6mm wide and Multi-Channel ECBs starting at 32mm wide allow for high channel density in a small space
Image 6919e31968cc98b09bc4aa3d

787-2861/100-000

Type:

1-channel

Current:

1 A

Supply voltage:

18 … 30 VDC

Signaling:

Status LED, Control input, Active signal output

Image 6919e31968cc98b09bc4aa3d

787-2861/200-000

Type:

1-channel

Current:

2 A

Supply voltage:

18 … 30 VDC

Signaling:

Status LED, Control input, Active signal output

Image 6919e31968cc98b09bc4aa3d

787-2861/400-000

Type:

1-channel

Current:

4 A

Supply voltage:

18 … 30 VDC

Signaling:

Status LED, Control input, Active signal output

Image 6919e31968cc98b09bc4aa3d

787-2861/600-000

Type:

1-channel

Current:

6 A

Supply voltage:

18 … 30 VDC

Signaling:

Status LED, Control input, Active signal output

Image 6919e31968cc98b09bc4aa3d

787-2861/800-000

Type:

1-channel

Current:

8 A

Supply voltage:

18 … 30 VDC

Signaling:

Status LED, Control input, Active signal output

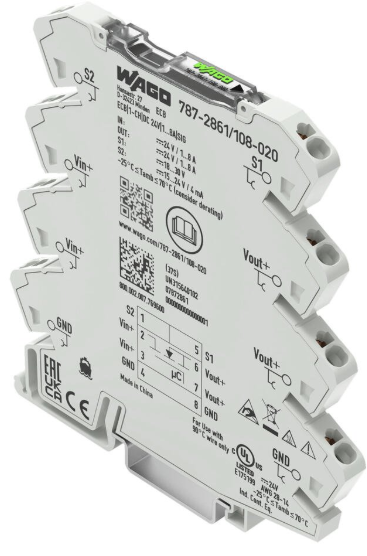

Image 6919e44468cc98b09bc4abf8

787-2861/108-020

Type:

1-channel

Current:

1 A ... 8 A (adjustable)

Supply voltage:

18 … 30 VDC

Signaling:

Status LED, Control input, Active signal output

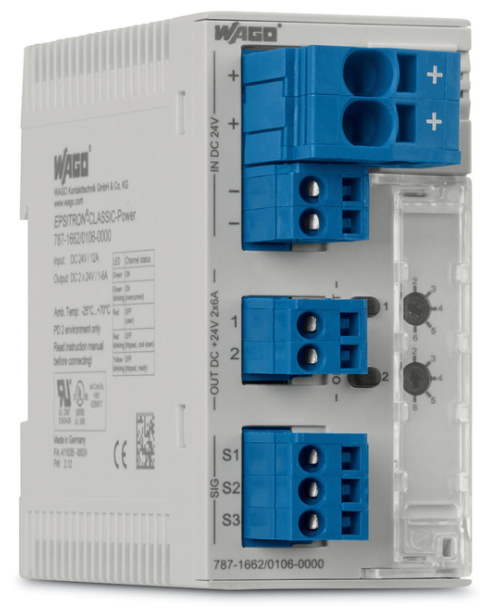

Image 6919e87c68cc98b09bc4ac9a

787-1662

Type:

2-channel

Current:

2 A ... 10 A (adjustable)

Supply voltage:

18 … 30 VDC

Signaling:

2 x LED, 1 x Remote control input (S1), 2 x Active signal output

Image 6919e87c68cc98b09bc4ac9a

787-1662/004-1000 (NEC C2)

Type:

2-channel

Current:

3.8 LPS

Supply voltage:

20 … 28.8 VDC

Signaling:

2 x LED, 1 x Remote control input (S1), 2 x Active signal output

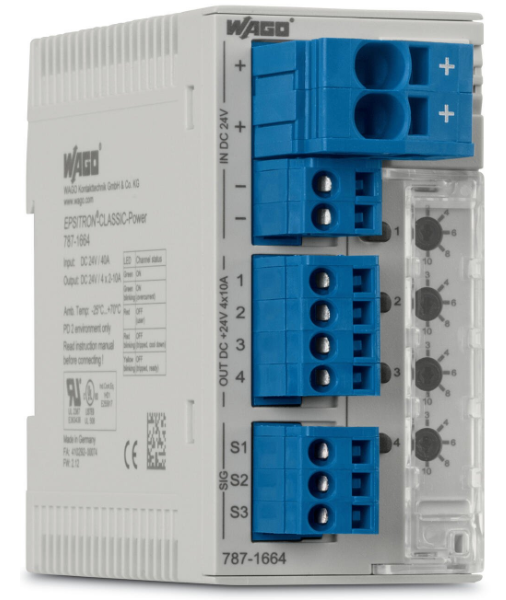

Image 6919e9bd68cc98b09bc4ad70

787-1664

Type:

4-channel

Current:

2 … 10 A (adjustable)

Supply voltage:

18 … 30 VDC

Signaling:

4 x LED, 1 x Remote control input (S1), 2 x Active signal output

Image 6919e9bd68cc98b09bc4ad70

787-1664/006-1000

Type:

4-channel

Current:

0.5 … 6 A (adjustable)

Supply voltage:

18 … 30 VDC

Signaling:

4 x LED, 1 x Remote control input (S1), 2 x Active signal output

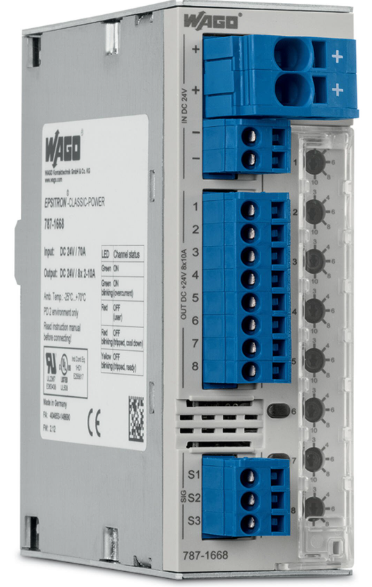

Image 6919ea7368cc98b09bc4ae1b

787-1668

Type:

8-channel

Current:

2 … 10 A (adjustable)

Supply voltage:

18 … 30 VDC

Signaling:

8 x LED, 1 x Remote control input (S1), 2 x Active signal output

Image 6919eab768cc98b09bc4aefa

787-1668/006-1000

Type:

8-channel

Current:

0.5 … 6 A (adjustable)

Supply voltage:

18 … 30 VDC

Signaling:

8 x LED, 1 x Remote control input (S1), 2 x Active signal output

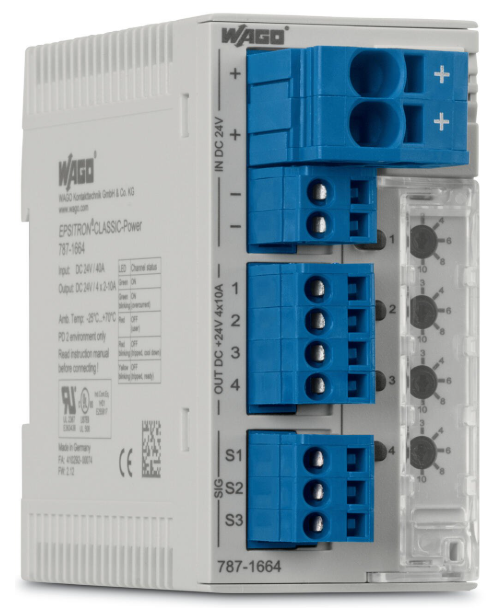

Image 6919eb2a68cc98b09bc4afee

787-1664/000-100

Type:

4-channel

Current:

2 … 10 A (adjustable)

Supply voltage:

10 … 16 VDC

Signaling:

4 x LED, 1 x Remote control input (S1), 2 x Active signal output

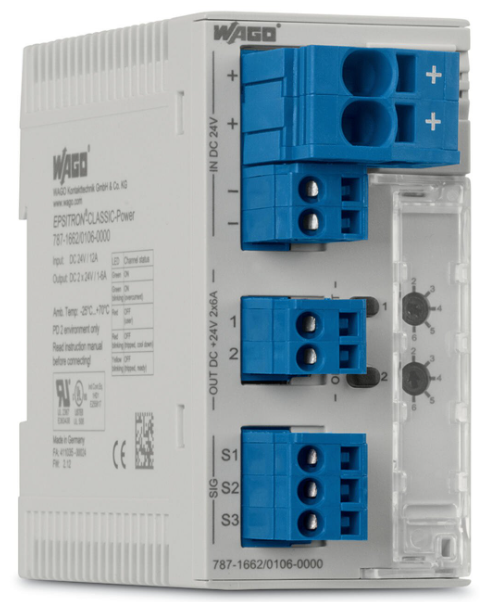

Image 6919eb9568cc98b09bc4b057

787-1662/000-250

Type:

2-channel

Current:

2...10A (adjustable)

Supply voltage:

32 … 58 VDC

Signaling:

2 x LED, 1 x Remote control input (S1), 2 x Active signal output

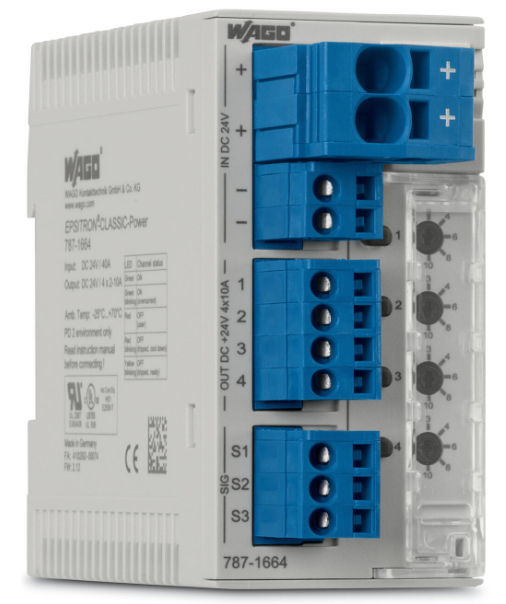

Image 6919ebec68cc98b09bc4b0b0

787-1664/000-200

Type:

4-channel

Current:

2...10A (adjustable)

Supply voltage:

32 … 58 VDC

Signaling:

4 x LED, 1 x Remote control input (S1), 2 x Active signal output

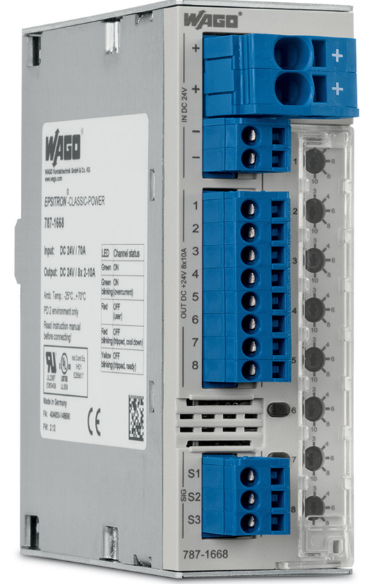

Image 6919ec5968cc98b09bc4b18b

787-1668/000-200

Type:

8-channel

Current:

2...10A (adjustable)

Supply voltage:

32 … 58 VDC

Signaling:

8 x LED, 1 x Remote control input (S1), 2 x Active signal output
