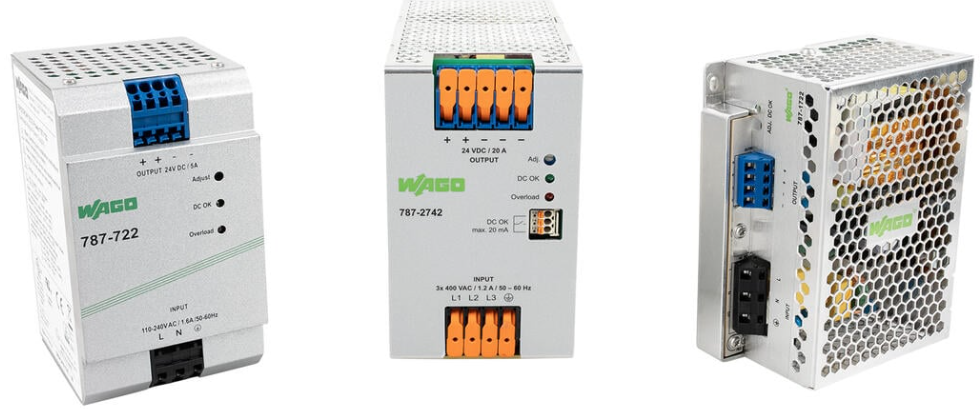

Eco Series

17 Products

Many basic applications only require 24 VDC. In these cases, Eco Power Supplies are the ideal solution from a cost point of view.
Key Benefits:

  • Output currents from 1.25 to 40 A
  • Wide input voltage range from 90 to 264 VAC allows operation in different supply networks
  • Especially cost-effective for basic applications
  • Maintenance-free CAGE CLAMP® connection technology saves time
  • Flexible DIN-rail mounting and flexible screw mounting via mounting clips allow installation in any situation
  • Flat, compact, stable metal housing
Image 6915f24c68cc98b09bc3d0cf

787-1701 (Rail/ Screw)

Input:

1 x 90 … 264 VAC; 125 … 375 VDC

Output:

12DC/ 2A

Signaling:

DC LED OK

Short-circuit protection:

Yes

Image 6915f3c268cc98b09bc3d1be

787-1711 (Rail/ Screw)

Input:

1 x 90 … 264 VAC; 125 … 375 VDC

Output:

12DC/ 4A

Signaling:

DC LED OK

Short-circuit protection:

Yes

Image 6915f3f468cc98b09bc3d207

787-1721 (Rail/ Screw)

Input:

1 x 90 … 264 VAC; 125 … 375 VDC

Output:

12DC/ 8A

Signaling:

DC LED OK

Short-circuit protection:

Yes

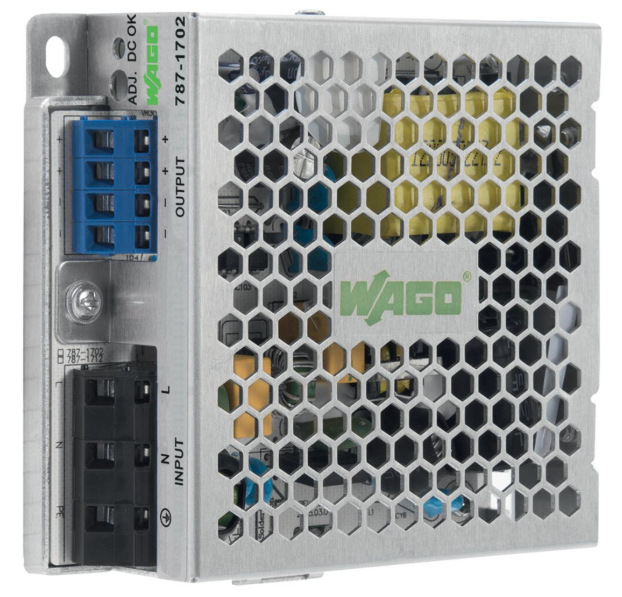

Image 6915f45968cc98b09bc3d262

787-1702 (Rail/ Screw)

Input:

1 x 90 … 264 VAC; 125 … 375 VDC

Output:

24DC/ 1.25A

Signaling:

DC LED OK

Short-circuit protection:

Yes

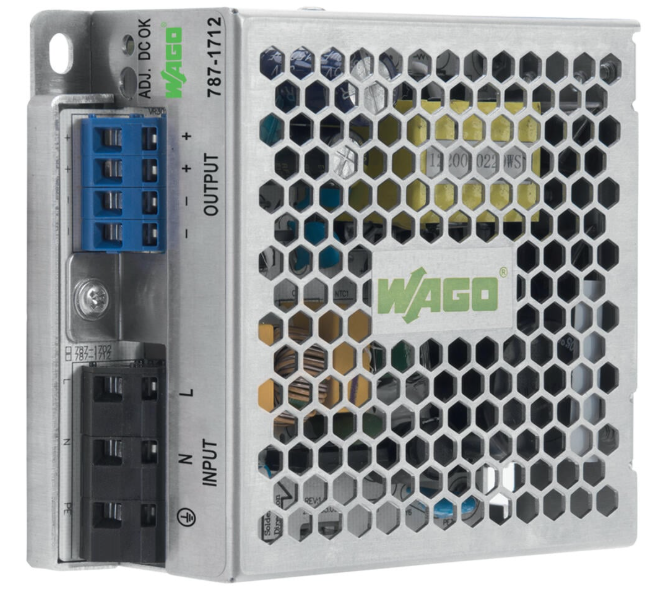

Image 6915f4e168cc98b09bc3d2df

787-1712 (Rail/ Screw)

Input:

1 x 90 … 264 VAC; 125 … 375 VDC

Output:

24DC/ 2.5A

Signaling:

DC LED OK

Short-circuit protection:

Yes

Image 6915f50c68cc98b09bc3d341

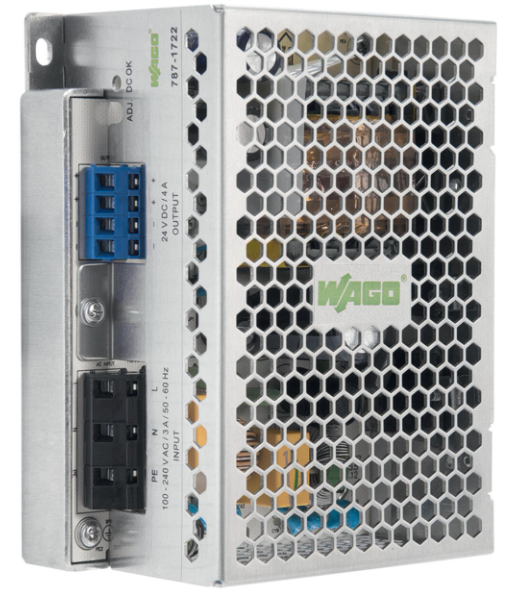

787-1722 (Rail/ Screw)

Input:

1 x 90 … 264 VAC; 125 … 375 VDC

Output:

24DC/ 5A

Signaling:

DC LED OK

Short-circuit protection:

Yes

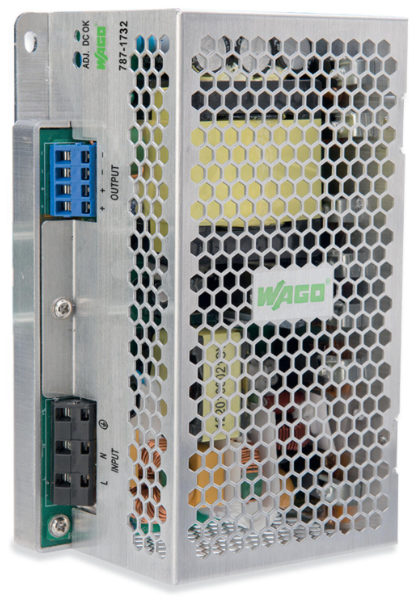

Image 6915f57c68cc98b09bc3d3a5

787-1732 (Rail/ Screw)

Input:

1 x 90 … 264 VAC; 125 … 375 VDC

Output:

24DC/ 10A

Signaling:

DC LED OK

Short-circuit protection:

Yes

Image 6915f5c668cc98b09bc3d455

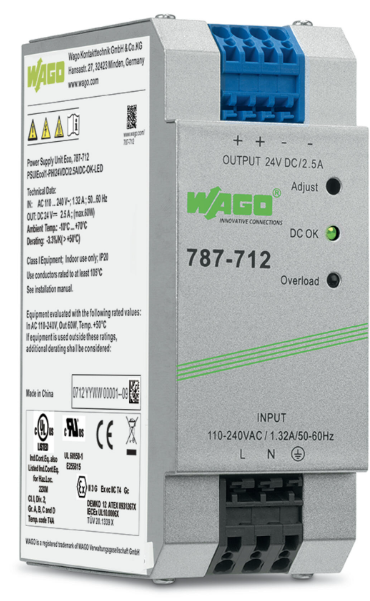

787-712

Input:

1 x 90 … 264 VAC; 90 … 373 VDC

Output:

24DC/ 2.5A

Signaling:

DC OK + Overload

Short-circuit protection:

Yes

Image 6915f66068cc98b09bc3d4bb

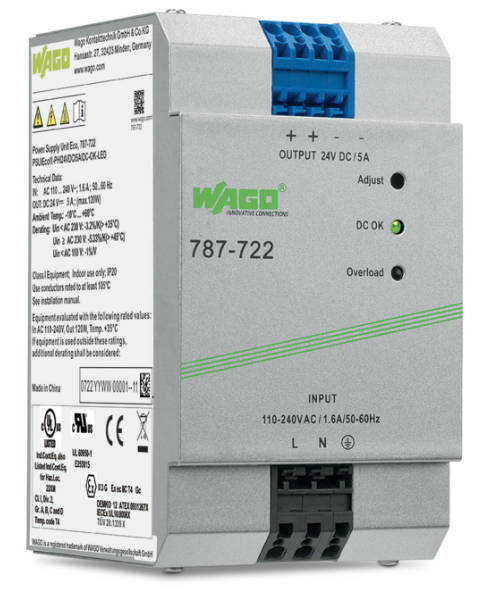

787-722

Input:

1 x 90 … 264 VAC; 90 … 373 VDC

Output:

24DC/ 5A

Signaling:

DC OK + Overload

Short-circuit protection:

Yes

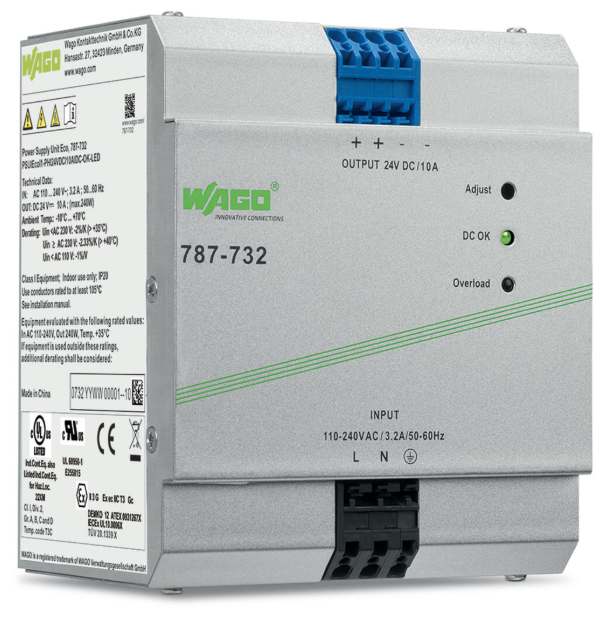

Image 6915f69568cc98b09bc3d524

787-732

Input:

1 x 90 … 264 VAC; 90 … 373 VDC

Output:

24DC/ 10A

Signaling:

DC OK + Overload

Short-circuit protection:

Yes

Image 6915f6c068cc98b09bc3d56d

787-734

Input:

1 x 90 … 264 VAC; 90 … 373 VDC

Output:

24DC/ 20A

Signaling:

DC OK + Overload

Short-circuit protection:

Yes

Image 6915f6e468cc98b09bc3d5b6

787-736

Input:

1 x 90 … 264 VAC; 90 … 373 VDC

Output:

24DC/ 40A

Signaling:

DC OK + Overload

Short-circuit protection:

Yes

Image 6915f7e968cc98b09bc3d609

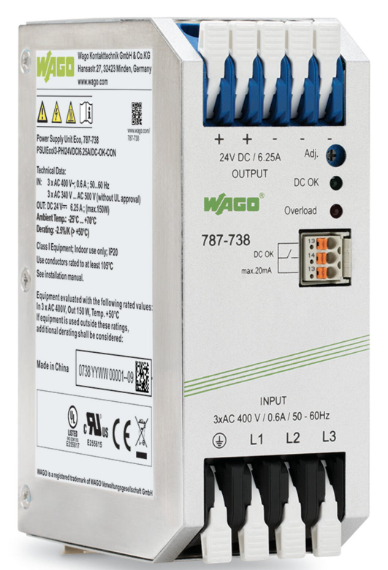

787-738

Input:

(2 / 3) x 306 … 550 VAC; 500 … 650 VDC

Output:

24DC/ 6.25A

Signaling:

DC OK + Overload + Signal

Short-circuit protection:

Yes

Image 6915f86068cc98b09bc3d66f

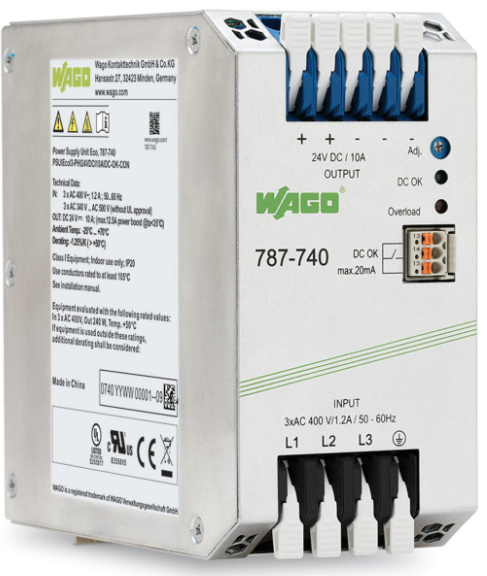

787-740

Input:

(2 / 3) x 306 … 550 VAC; 500 … 650 VDC

Output:

24DC/ 10A

Signaling:

DC OK + Overload + Signal

Short-circuit protection:

Yes

Image 6915f89168cc98b09bc3d6d8

787-742

Input:

(2 / 3) x 306 … 550 VAC; 500 … 650 VDC

Output:

24DC/ 20A

Signaling:

DC OK + Overload + Signal

Short-circuit protection:

Yes

Image 6915f8be68cc98b09bc3d721

787-2742

Input:

(2 / 3) x 325 … 575 VAC; 560 … 700 VDC

Output:

24DC/ 20A

Signaling:

DC OK + Overload + Signal

Short-circuit protection:

Yes

Image 6915f8f668cc98b09bc3d765

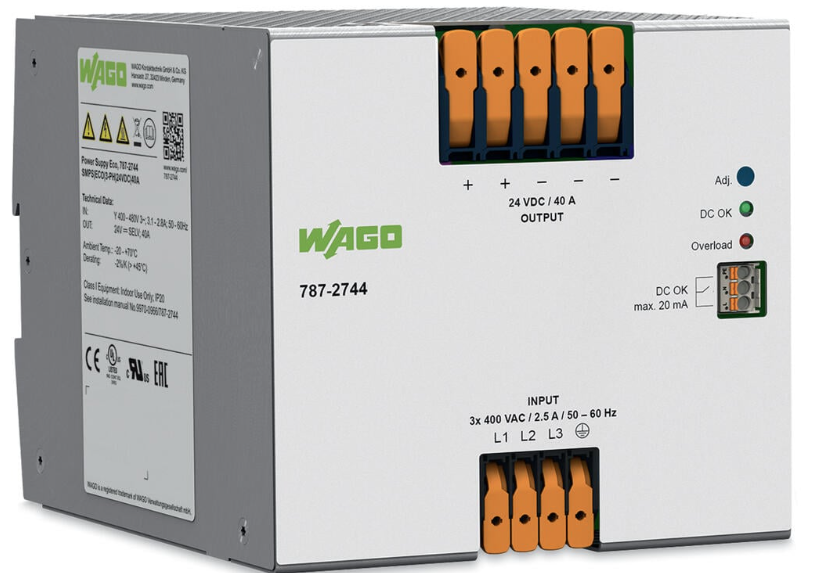

787-2744

Input:

(2 / 3) x 325 … 575 VAC; 560 … 700 VDC

Output:

24DC/ 40A

Signaling:

DC OK + Overload + Signal

Short-circuit protection:

Yes
