DC/DC Converter

12 Products

For use instead of an additional power supply, WAGO’s DC/DC converters are ideal for specialty voltages. For example, they can be used for reliably powering sensors and actuators.
The Benefits for You:

  • WAGO’s DC/DC converters can be used instead of an additional power supply for applications with specialty voltages.
  • Slim design: “True” 6.0 mm (0.23 inch) width maximizes panel space
  • A wide range of surrounding air temperatures
  • Ready for worldwide use in many industries, thanks to UL listing
  • Same profile as 857 and 2857 Series Signal Conditioners and Relays: full commoning of the supply voltage

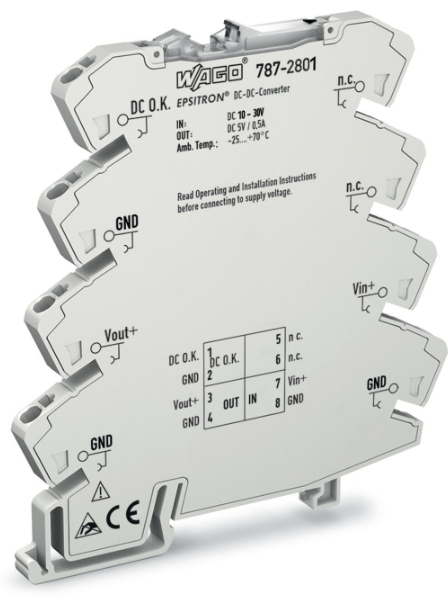

Image 6917438068cc98b09bc4166a

787-2801

Input:

10 … 30 VDC

Output:

5 VDC/ 0.5A

Signaling:

DC OK, Short circuit LED, Signal output

Width:

6mm

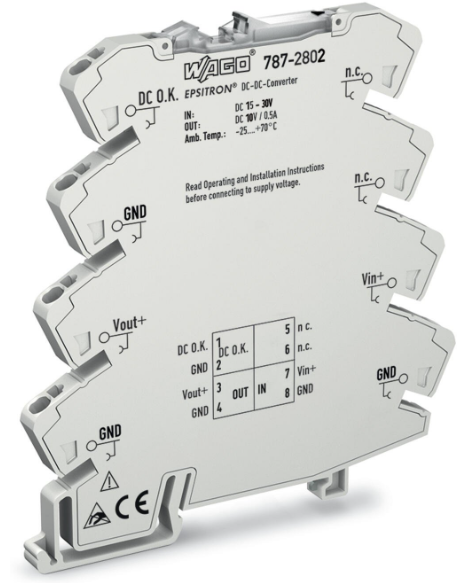

Image 6917449568cc98b09bc416df

787-2802

Input:

10 … 30 VDC

Output:

10 VDC/ 0.5A

Signaling:

DC OK, Short circuit LED, Signal output

Width:

6mm

Image 691744c968cc98b09bc41730

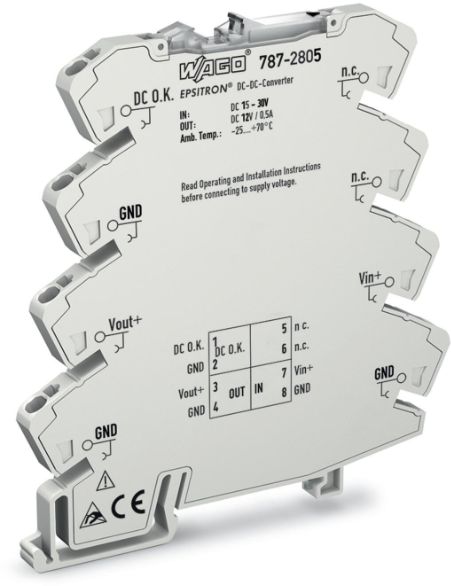

787-2805

Input:

10 … 30 VDC

Output:

12 VDC/ 0.5A

Signaling:

DC OK, Short circuit LED, Signal output

Width:

6mm

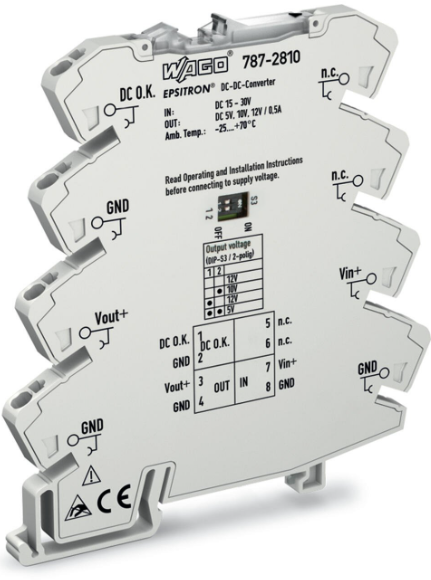

Image 691744f968cc98b09bc4177b

787-2810

Input:

10 … 30 VDC

Output:

5/10/12 VDC/ 0.5A

Signaling:

DC OK, Short circuit LED, Signal output

Width:

6mm

Image 691744f968cc98b09bc4177b

787-2803

Input:

40 … 55 VDC

Output:

24 VDC/ 0.5A

Signaling:

DC OK, Short circuit LED, Signal output

Width:

6mm

Image 691745d668cc98b09bc41824

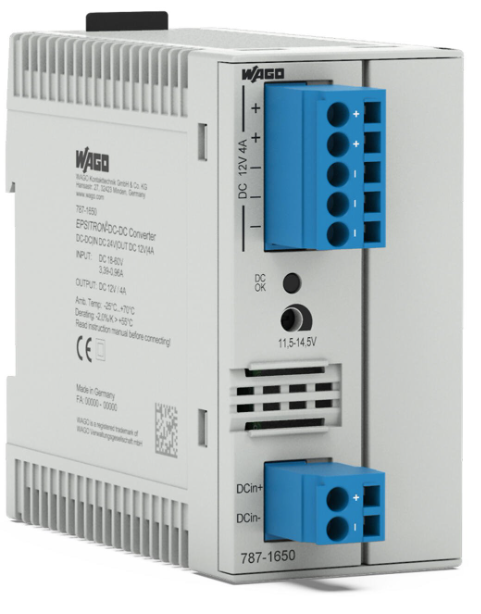

787-1650

Input:

18 … 60 VDC

Output:

12 VDC/ 4A

Signaling:

Operation OK, Status indication LED

Protection class:

III (Varistor)

Image 6917471e68cc98b09bc418a2

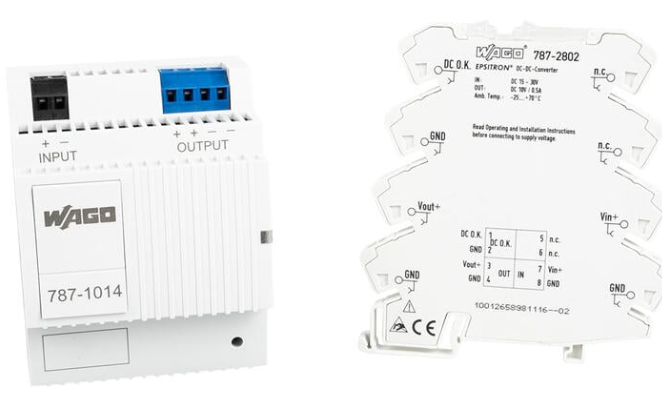

787-1014

Input:

77 … 140 VDC

Output:

24VDC/ 2A

Signaling:

Operation OK, Status indication LED

Protection class:

II (Varistor)

Image 6917493368cc98b09bc41927

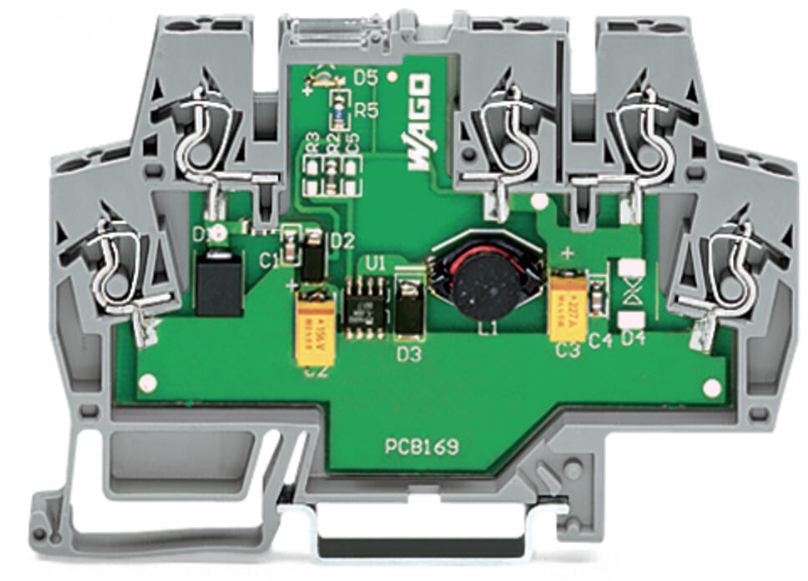

859-801

Input:

10 … 30 VDC

Output:

5VDC/ 0.4A

Signaling:

LED

Reverse protection:

Yes

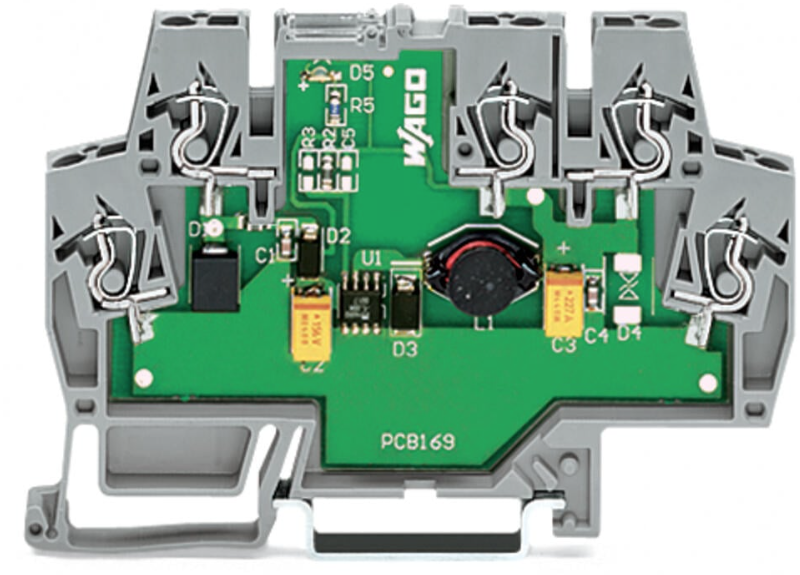

Image 6917498c68cc98b09bc41982

859-802

Input:

10 … 30 VDC

Output:

10VDC/ 0.5A

Signaling:

LED

Reverse protection:

Yes

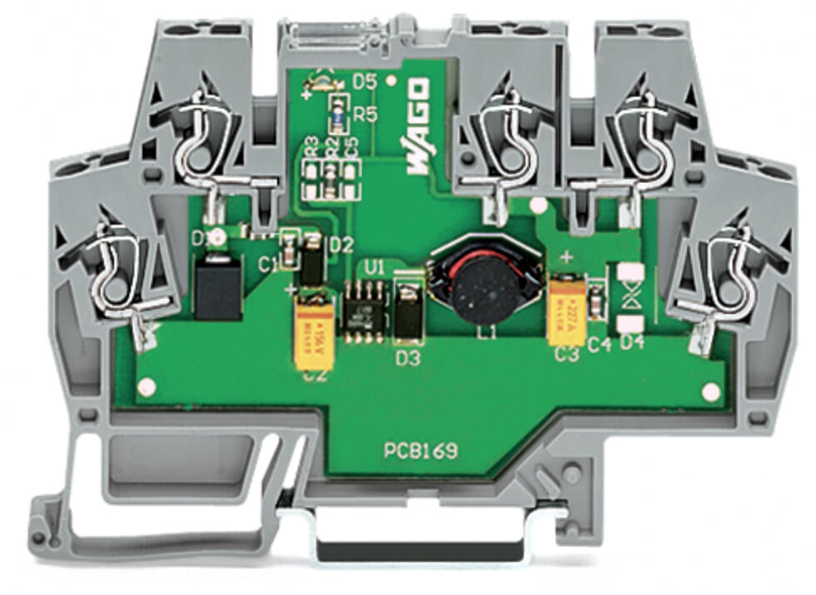

Image 691749d368cc98b09bc419ef

859-805

Input:

10 … 30 VDC

Output:

12VDC/ 0.5A

Signaling:

LED

Reverse protection:

Yes

Image 691749f968cc98b09bc41a32

859-804

Input:

8 … 16 VDC

Output:

24VDC/ 0.25A

Signaling:

LED

Reverse protection:

Yes

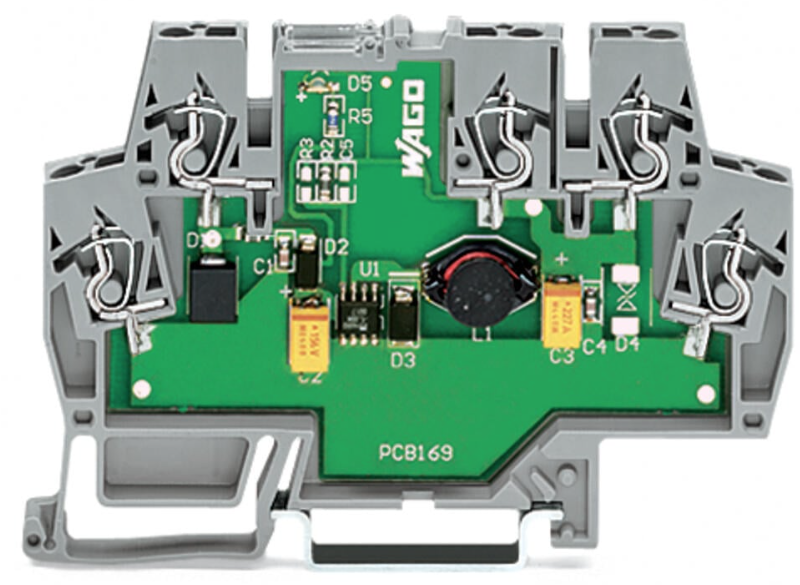

Image 69174a3768cc98b09bc41a80

859-806

Input:

8 … 16 VDC

Output:

12VDC/ 0.5A

Signaling:

LED

Reverse protection:

Yes
