Safety field boxes
14 Products
SAFETY FIELD BOXES
The Safety Fieldbox is suitable for simple Plug & Play installation of up to eight safety switchgear devices. The eight-pin M12 connector enables connection of all common types of safety switchgear, including sensors, interlocks, light grids and operating panels. This solution is also suitable for larger machinery and systems, as it allows for series connection of up to ten safety fieldboxes with 80 switchgear devices.
:quality(100)/https://t3hie.com.vn/api/media/file/image-1764946358769.png)
SFB-EIP-8M12-IOP
Features:
Safety fieldbox for EtherNet/IP with CIP Safety
For connection of up to 8 safety switching devices
Integrated dual-port switch
Protection class IP66, IP67
:quality(100)/https://t3hie.com.vn/api/media/file/image-1764946486469.png)

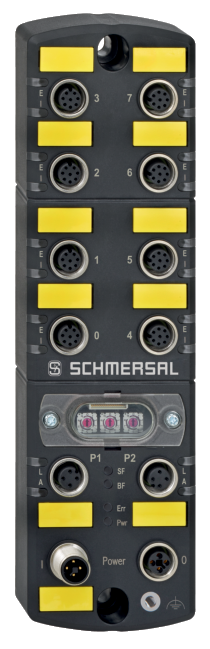

SFB-PN-IRT-8M12-IOP-V2
Features:
Safety fieldbox for PROFINET/PROFIsafe
For connection of up to 8 safety switching devices
Integrated dual-port switch, IRT capable
Protection class IP67
:quality(100)/https://t3hie.com.vn/api/media/file/image-1764946518427.png)

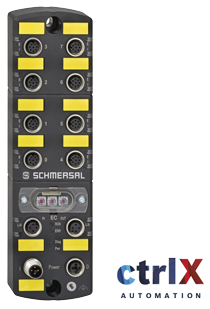

SFB-EC-8M12-IOP
Features:
Safety fieldbox for EtherCAT with FSoE
For connection of up to 8 safety switching devices
Integrated dual-port switch
Protection class IP66, IP67
:quality(100)/https://t3hie.com.vn/api/media/file/image-1764946639066.png)
M12- pre-wired power cable
Features:
Pre-wired cable (5m, 20m, 20m, 30m)
:quality(100)/https://t3hie.com.vn/api/media/file/image-1764946713855.png)
M12 power connecting cables
Features:
Connecting cable (0.3m, 0.5m, 1.5m, 3.0m, 5.0m, 7.5m, 15m)
:quality(100)/https://t3hie.com.vn/api/media/file/image-1764946839662.png)
M12-IE Pre-wired cable
Features:
Pre-wired cable (5m, 7.5m, 10m, 20m)
:quality(100)/https://t3hie.com.vn/api/media/file/image-1764946880575.png)
M12-IE Connecting cables
Features:
Connecting cable (0.3m, 1m, 3m, 5m, 7m, 10m)
:quality(100)/https://t3hie.com.vn/api/media/file/image-1764946939532.png)
M12-8 pole connecting cables
Features:
Connecting cable (0.25m, 0.5m, 1m, 1.5m, 2.5m, 3.5m, 5m, 7.5m, 10m, 20m, 30m)
:quality(100)/https://t3hie.com.vn/api/media/file/image-1764947092252.png)
Y-Adapter for series SLC/SLG 440
Features:
For connecting optoelectronic safety switching devices (1m)
:quality(100)/https://t3hie.com.vn/api/media/file/image-1764947141273.png)
Adapter for BNS Sensor (02z)
Features:
Connecting cable (3m, 5m, 7.5m)
:quality(100)/https://t3hie.com.vn/api/media/file/image-1764947212789.png)

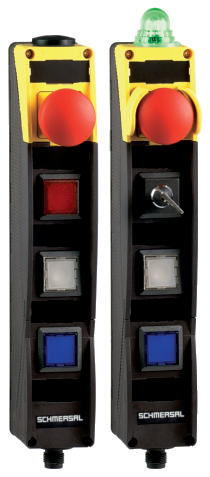

BDF 200-FB
Features:
E-STOP with electronic OSSDs
Thermoplastic enclosure
Slender shock-proof enclosure, to be fitted to commercial-off-the-shelf aluminum profiles
M12 connector, 8-pole
:quality(100)/https://t3hie.com.vn/api/media/file/image-1764947236935.png)
AZM 161-FB
Features:
Thermoplastic enclosure, Double-insulated
Interlock with protection against incorrect locking.
130 mm x 90 mm x 30 mm
6 Contacts, Long life
Device version for connection to a Safety Field Box SFB, connector plug M12, 8-pole
:quality(100)/https://t3hie.com.vn/api/media/file/image-1764947270458.png)
AZM 170-FB
Features:
Thermoplastic enclosure, Double-insulated, Compact design
Interlock with protection against incorrect locking.
Long life, High holding force
90 mm x 84 mm x 30 mm
Device version for connection to a Safety Field Box SFB, connector plug M12, 8-pole
:quality(100)/https://t3hie.com.vn/api/media/file/image-1764947305313.png)

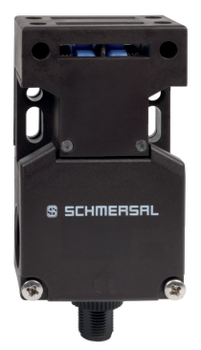

AZ 16-FB
Features:
Thermoplastic enclosure, Double-insulated, Universal coding, Long life
52 mm x 90 mm x 30 mm
High level of contact reliability with low voltages and currents
Insensitive to soiling, Slotted holes for adjustment, circular holes for location
Device version for connection to a Safety Field Box SFB, M12 connector, 8-pole
