ESSENTIAL power supply
11 Products
ESSENTIAL Power Supplies with basic functionality
Designed for commercial applications, the ESSENTIAL POWER line from Phoenix Contact offers basic 24 V power functionality for controlled commercial environments. The ESSENTIAL power supplies are designed for basic, cost-sensitive applications, such as building automation, vending machines, test and simulation, and solar cell production.
The ESSENTIAL power supplies are listed to UL 61010, are CE approved, and meet the IEC 61588-2-16 safety transformer standard. The power supplies have a wide temperature range and a flexible wide-range input.
Your Advantages
- Worldwide use thanks to the wide range input and international approval package
- Fast installation, thanks to easy DIN rail mounting
- Greater availability, thanks to fanless convention cooling
:quality(100)/https://t3hie.com.vn/api/media/file/image-1729754927004.png)

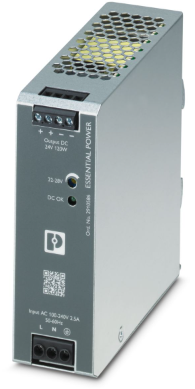

2910586 ESSENTIAL-PS/1AC/24DC/120W/EE
Input AC:
85 ... 264 VAC
Inrush current:
< 40 A
Output:
24 VDC
Current:
5 A
:quality(100)/https://t3hie.com.vn/api/media/file/image-1729755128049.png)
2910587 ESSENTIAL-PS/1AC/24DC/240W/EE
Input AC:
85 ... 264 VAC
Inrush current:
< 40 A
Output:
24 VDC
Current:
10 A
:quality(100)/https://t3hie.com.vn/api/media/file/image-1729755165530.png)

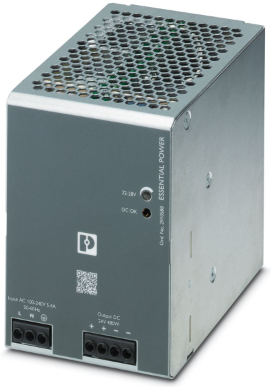

2910588 ESSENTIAL-PS/1AC/24DC/480W/EE
Input AC:
85 ... 264 VAC
Inrush current:
< 40 A
Output:
24 VDC
Current:
20 A
:quality(100)/https://t3hie.com.vn/api/media/file/image-1729755203614.png)
1018294 ESSENTIAL-PS/3AC/24DC/960W/EE
Input AC:
3x 320 ... 575 VAC
Inrush current:
< 20 A
Output:
24 VDC
Current:
40 A
:quality(100)/https://t3hie.com.vn/api/media/file/image-1729755285257.png)
1018299 ESSENTIAL-PS/3AC/24DC/480W/EE
Input AC:
3x 320 ... 575 VAC
Inrush current:
< 20 A
Output:
24 VDC
Current:
20 A
:quality(100)/https://t3hie.com.vn/api/media/file/image-1729755399005.png)

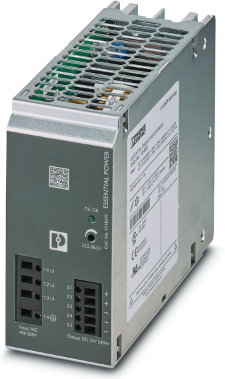

1018291 ESSENTIAL-PS/3AC/24DC/240W/EE
Input AC:
3x 320 ... 575 VAC
Inrush current:
< 20 A
Output:
24 VDC
Current:
10 A
:quality(100)/https://t3hie.com.vn/api/media/file/image-1729755468251.png)
1394764 PS-EE-2G/1AC/24DC/60W/SC
Input AC:
85 ... 264 VAC
Inrush current:
< 27 A
Output:
24 VDC
Current:
2.5 A
:quality(100)/https://t3hie.com.vn/api/media/file/image-1729755540210.png)
1234301 PS-EE-2G/1AC/24DC/75W/SC
Input AC:
85 ... 264 VAC
Inrush current:
< 27 A
Output:
24 VDC
Current:
3.12 A
:quality(100)/https://t3hie.com.vn/api/media/file/image-1729755589055.png)
1234302 PS-EE-2G/1AC/24DC/120W/SC
Input AC:
85 ... 264 VAC
Inrush current:
< 27 A
Output:
24 VDC
Current:
5 A
:quality(100)/https://t3hie.com.vn/api/media/file/image-1729755633188.png)
1234304 PS-EE-2G/1AC/24DC/240W/SC
Input AC:
85 ... 264 VAC
Inrush current:
< 27 A
Output:
24 VDC
Current:
10 A
:quality(100)/https://t3hie.com.vn/api/media/file/image-1729755673316.png)
1234308 PS-EE-2G/1AC/24DC/480W/SC
Input AC:
85 ... 264 VAC
Inrush current:
< 27 A
Output:
24 VDC
Current:
20 A
