PJT Series
12 Products
Highlights & Features
The PJT open frame power supply series offers choices of 12 V, 15 V, 18 V and 24 V nominal output voltages. The single output products are designed with small standard industrial footprints at 3” x 5”. The highly efficient convection cooling designs enable optimum thermal management for high power efficiency. The PJT series of products can operate from -10°C to +70°C across the entire input voltage range of 90 to 264 Vac and are certified for safety standard according to IEC/EN/UL 62368-1 and for EMI standard according to EN/BS EN 55032, Class B.
• Universal AC input voltage
• Standard industrial foot print of 3” x 5”
• Low leakage current < 0.1 mA
• Convection cooled operating temperature range from -10°C to +70°C
• High MTBF > 700,000 hrs as per Telcordia SR-332
• Multiple connector source options
:quality(100)/https://t3hie.com.vn/api/media/file/image-1740967674697.png)
PJT-24V40WBAA
Input voltage:
90-264VAC
Output:
24 VDC/1.66A
Cooling system:
Convection
Operating temperature:
-10°C ~70°C
:quality(100)/https://t3hie.com.vn/api/media/file/image-1740967965957.png)
PJT-24V100WBBA
Input voltage:
90-264VAC
Output:
24 VDC/4.17A
Cooling system:
Convection
Operating temperature:
-10°C ~70°C
:quality(100)/https://t3hie.com.vn/api/media/file/image-1740968078442.png)
PJT-12V40WBAA
Input voltage:
90-264VAC
Output:
12 VDC/3.33A
Cooling system:
Convection
Operating temperature:
-10°C ~70°C
:quality(100)/https://t3hie.com.vn/api/media/file/image-1740968153647.png)
PJT-12V65WBAA
Input voltage:
90-264VAC
Output:
12 VDC/5A
Cooling system:
Convection
Operating temperature:
-10°C ~70°C
:quality(100)/https://t3hie.com.vn/api/media/file/image-1740968208274.png)
PJT-12V100WBAA
Input voltage:
90-264VAC
Output:
12 VDC/8.33A
Cooling system:
Convection
Operating temperature:
-10°C ~70°C
:quality(100)/https://t3hie.com.vn/api/media/file/image-1740968336545.png)
PJT-15V40WBAA
Input voltage:
90-264VAC
Output:
15 VDC/2.67A
Cooling system:
Convection
Operating temperature:
-10°C ~70°C
:quality(100)/https://t3hie.com.vn/api/media/file/image-1740968392497.png)
PJT-15V65WBAA
Input voltage:
90-264VAC
Output:
15 VDC/4.2A
Cooling system:
Convection
Operating temperature:
-10°C ~70°C
:quality(100)/https://t3hie.com.vn/api/media/file/image-1740968434955.png)
PJT-15V100WBAA
Input voltage:
90-264VAC
Output:
15 VDC/6.67A
Cooling system:
Convection
Operating temperature:
-10°C ~70°C
:quality(100)/https://t3hie.com.vn/api/media/file/image-1740968501471.png)

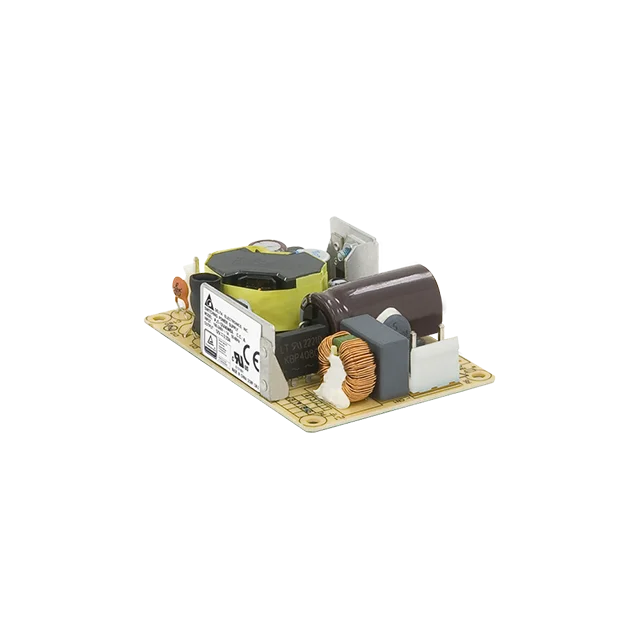

PJT-18V40WBAA
Input voltage:
90-264VAC
Output:
18 VDC/2.22A
Cooling system:
Convection
Operating temperature:
-10°C ~70°C
:quality(100)/https://t3hie.com.vn/api/media/file/image-1740968545224.png)
PJT-18V65WBAA
Input voltage:
90-264VAC
Output:
18 VDC/3.61A
Cooling system:
Convection
Operating temperature:
-10°C ~70°C
:quality(100)/https://t3hie.com.vn/api/media/file/image-1740968594259.png)
PJT-18V100WBAA
Input voltage:
90-264VAC
Output:
18 VDC/5.55A
Cooling system:
Convection
Operating temperature:
-10°C ~70°C
:quality(100)/https://t3hie.com.vn/api/media/file/image-1740968642066.png)
PJT-27V150WBNA
Input voltage:
90-264VAC
Output:
V1: 27 VDC/5.55A
V2: 12 VDC/0.5A
Cooling system:
Convection
Operating temperature:
-10°C ~70°C
