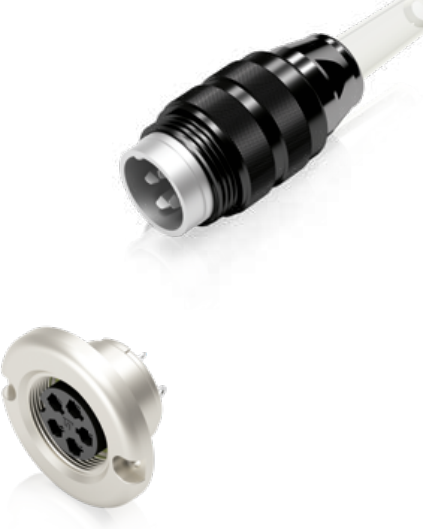

M9 connectors are a miniature solution recognized for their exceptional performance and adaptability across industries. The M9 series is engineered with precision and a focus on durability. These bayonet connectors comply with protection class IP40 and offer 3 to 12 contacts with a rated current of 5 A and 10 A (depending on the number of contacts). Cable and flange connectors have a solder connection and an operating temperature range from -40 °C to +85 °C. Flanged plug/flange socket of the 690 series has the dimensions 31mm x 44mm, a shieldable version is available. More than 500 mating cycles are possible.

Degree of protection: IP40

Voltage: 125V/ 250V

Current: 5A-10A

No. of contacts: 3-12
