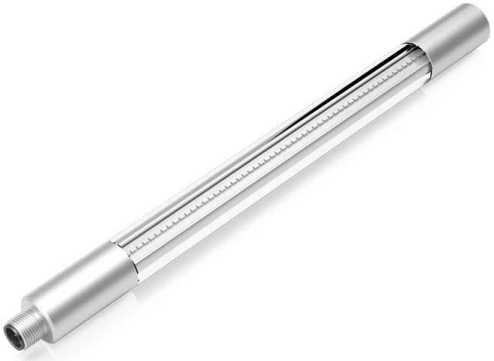

The Binder LED Lights are characterized by technical innovations and modern design. The LED Lights can be used in rough environments because of their compact constructions.

Typical Applications:

• Operating panel
• Drafting tabeles
• Mounting in switch cabinets
• Targeted lighting

 Specifications:

• Termination system: M12 A-coded
• Light beam length:  250mm, 358mm, 412mm
• Degree of protection IP 69K
• Luminosity 277 lm, 380 lm, 596 lm
• Number of LEDs per lamp:  60, 96,144
• Light colour 4.000 K (nw)
• Voltage 24 V DC
• Temperature in use – 25° C/ + 60° C
• Durability till 50.000 h

Degree of protection: IP67/68/69K

Voltage: 24VDC

Current: 0.24A-0.46A

No. of contacts: 4
