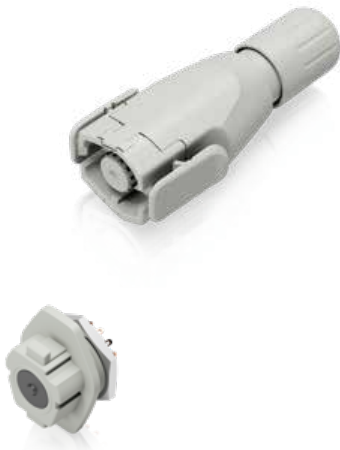

The ELC Series 570 features a unique snap-in locking system that ensures more than 5000 mating operations, meeting the requirements of many medical device OEMs. The connector has a PA66 plastic housing in grey-white, similar to RAL 9002, 12 gold-plated contacts for a connection cross section of 0.25 mm² and is designed for a rated current of 2 A at 150 V. When unplugged, the flange socket is protected against the ingress of liquids, splashing water and accidental electrical contact. When plugged in, the ELC connector has protection class IP54.

Degree of protection: IP54

Voltage: 150V

Current: 2A

No. of contacts: 12
